Product Description：

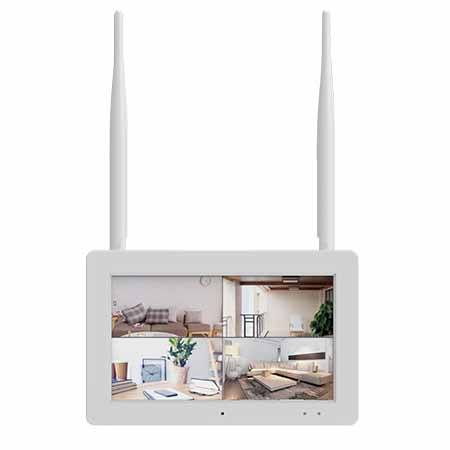

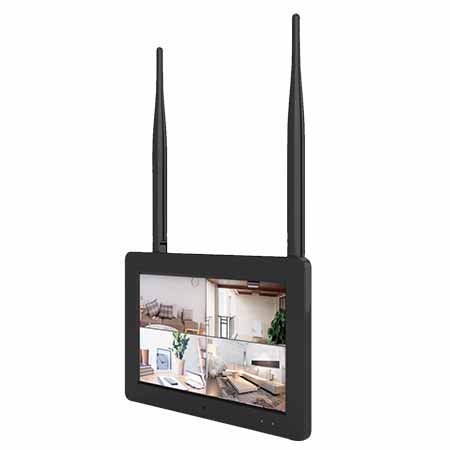

The 7-inch high-definition touch screen network video recorder is designed with lightweight and easy to place. It can support 4 channels of real-time input at the same time, support motion detection recording, and store video in TF card.
1CH playback; support dual WIFI; support IOS, Android mobile APP remote access, remote playback and alarm push function; camera can connect recorder through wireless code match. NVR can support 4CH of 2MP, H264/H265 pure wireless camera input, battery camera and doorbell.
|
Item NO. |
T8204-W |
|
|
operating system |
embedded Linux operating system |
|
|
video input |
|
4 channels x 1080P, pure wireless camera |
|
video output |
LCD capacitive screen |
Size: 7 inches Resolution: 1024x600 Support touch screen operation |
|
audio input |
Audio input |
built-in mic-phone ,Support voice intercom with IPC |
|
Audio output |
Audio output |
Support speaker output (built-in speaker) |
|
Video coding parameters |
Video compression standard |
Standard H.264, H265 |
|
Video and playback performance |
4-channel 1080P video 1 channel 1080P playback |
|
|
Video bit rate |
256 Kbps -- 3.0 Mbps |
|
|
Dual code stream |
support |
|
|
Audio compression standard |
AAC |
|
|
Video management |
Video mode |
PIR motion detection recording, automatic overlay loop recording |
|
Storage method |
Video storage method |
TF card recording storage |
|
External interface |
Battery switch |
Select the power supply to NVR by built-in battery or DC jact. |
|
USB interface |
1 USB 2.0 interface (supports USB flash drive upgrade, and mouse) |
|
|
2.4G dual WIFI interface |
Support IPC code and connection, and wireless Internet access |
|
|
TF card holder |
Maximum support 128G |
|
|
other |
Power supply |
DC 5V 2.5A |
|
Power consumption |
≤8.0W |
|
|
Working temperature |
-10℃--＋50℃ |
|
|
Machine size |
191*123*31.5mm |
|
|
Machine weight |
≤500g |
|
