gateway |
||
Item |
JA-G4S |
|
Video/audio input |
Network video input |
4ch |
Video output |
Video output |
Plug to home wifi Router |
preview |
APP,CMS |
|
Video compression |
Standard H.264 |
|
video encoding |
Recording resolution |
720P/960P/1080P |
playback |
1ch (APP) |
|
video manage |
recording |
Motion detection recording,auto recording overwriting |
back up |
Use card reader to play on PC,make back on APP when viewing playback |
|
storage |
type |
1 MicroSD port |
max |
128G |
|
external port |
Ethernet port |
1 J45 10M/100M self adaptive Ethernet port |
2 antenna |
||
button port |
2 buttons , one for pairing,1 for reset |
|
Indicator light |
P2P LED |
one P2P LED |
Channel Indicator LED |
4 CHANNEL LED |
|
others |
POWER SUPPLY |
USB DC 5V 1A |
WORK TEMPERATURE |
-10℃--+55℃ |
|
WORK HUMIDITY |
10%--90% |
|
SIZE |
80x80x27mm |
|
N.W. |
80g |
WIRELESS BULLET PO1020-W |
||
SENSOR |
SENSOR |
1/3" 寸CMOS SENSOR |
RESOLUTION |
1080P |
|
Minimum Illumination |
0Lux (with infrared led) |
|
NIGHT VISION |
NIGHT |
9 METER |
DAY |
AUTO SWITCH IR-CUT |
|
Video |
Compression |
H.264 |
resolution |
1920 x 1080P,640 x 480P |
|
Audio |
input/output |
Insert mic and speaker(two way audio) |
Audio |
AAC |
|
Network |
WIFI |
802.11b/g/n; |
WIFI SAFETY CLASSIFIED |
WEP, WPA, WPA2 |
|
INDICATOR LED |
CABLE LED |
GREEN |
RESET BUTTON |
|
For re-code matching |
PIR |
included |
PIR MOTION DETECTION |
Storage |
Micro SD card |
MAX 128GB |
Physical feature |
WORK TEMPERATURE |
–20°C~50°C |
WORK HUMIDITY |
20%~85%; uncondensed |
|
STORAGE TEMPERATURE |
–20°C~50°C |
|
STORAGE HUMIDITY |
20%~85%; uncondensed |
Description :
MINI WIRELESS KITS,newest product among the wireless family of JUAN,Support TF card, motion detection recording, plug and play, with elegant housing,space saving. camera is developed as JUAN, support app , it is the best choice for house guarding.
BASE STATION(MINI NVR)
Features:
1.Ethernet cable plug to your home wifi router
3.support 128GB micro SD card
4.2X1080P wireless cameras, MAX 4 PCS
5. channel indicator led lights

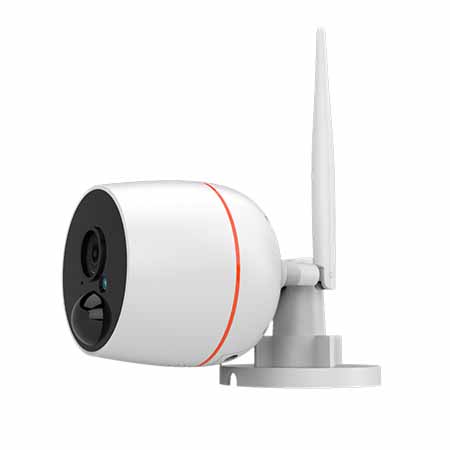

PO1020-W camera features:
1.1080P resolution
3.local video storage (on base station)
4.PIR motion detection
5.IR NIGHT VISION
6.Wirelss pairing
7.Can be use without recorder, by connecting to home wifi
8.wireless pairing adding or AP mode adding
1)4ch 1080P Ipcam connection
2)1ch play back on APPor on SD card
3)video compression H.264
4)1个RJ45 100M Ethernet port/1 SD card (MAX128G);
5)support wireless camera and battery camera
