gateway |
||
Model name |
JA-G4S |
|
Video input |
IP |
4CH |
Video output |
output |
Wired connection to home WIFI router |
preview |
Mobile APP,PC CMS |
|
Video compression starndard |
H.264 |
|
Encoding Resolution |
Recording resolution |
720P/960P/1080P |
playback |
1CH(APP) |
|
Recording management |
recording |
motion detection recording, auto overlap |
backup |
Click “backup” when playback, use card reader and computer to backup |
|
storage |
type |
One TF card connector |
capability |
128G Max |
|
Connector |
Network |
One RJ45 100M connector |
Two WIFI antenna |
||
button |
Two buttons,one for pair,one for reset |
|
Indicator light |
P2P |
One P2P online indicator light |
channel |
four channel connection indicator light |
|
Others |
power |
USB DC 5V 1A |
Working temperature |
-10℃--+55℃ |
|
Working humidity |
10%--90% |
|
size |
80x80x27mm |
|
weight |
80g |
Battery camera BC20 |
||
sensor |
sensor |
1/3" CMOS |
resolution |
1080P(1920*1080) |
|
Minimum illumination |
0Lux (带红外灯) |
|
Day and night mode |
Auto switch IR-CUT |
|
video |
compression |
H.264 |
Frame rate |
15fps |
|
resolution |
1080P(1920*1080) |
|
Audio |
input/output |
Built in microphone and speaker (two way audio) |
compression |
AAC |
|
Network |
WIFI |
802.11b/g/n; |
Encryption |
WEP, WPA, WPA2 |
|
Button |
One button |
Turn on/off, or auto pair to NVR |
Indicator |
Indicator |
Red, blue |
Storage |
no |
On NVR |
Power |
General 18650 lithium batter |
2 18650 rechargeable lithium battery |
5V2A MicroUSB |
external power use or recharge the battery directly |
|
Power consumption |
|
Stand-by(wifi online):2uW , working status:1.5W max |
others |
Working temperature |
–20°C~50°C |
Working humidity |
20%~85% |
|
Storage temperature |
–20°C~50°C |
|
Storage humidity |
20%~85% |
|
Installation |
Magnetic base |
Magnetic base |
size |
|
|
weight |
|

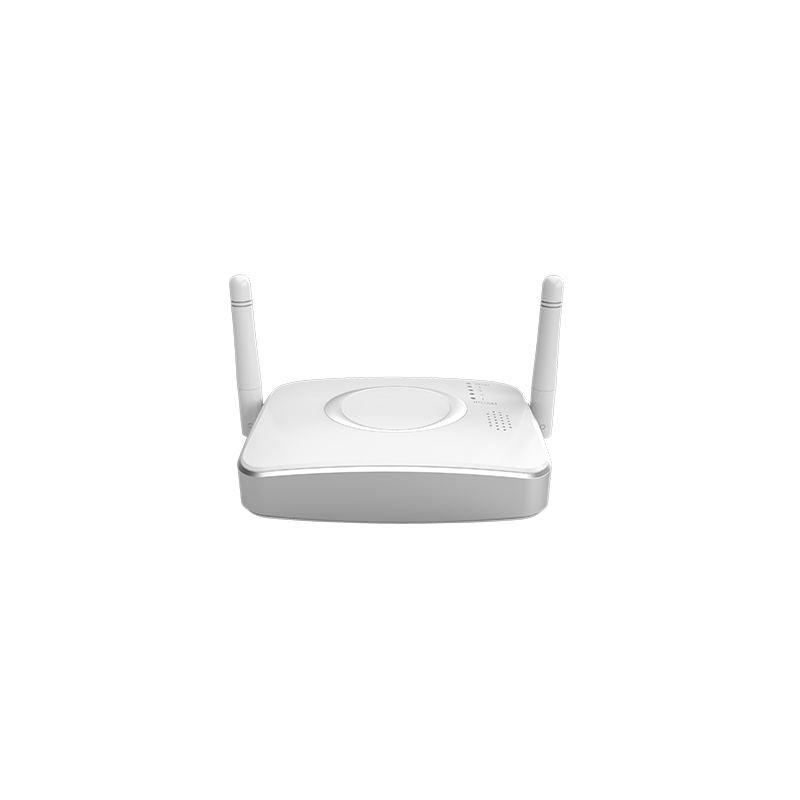

Main feature of gateway--mini NVR:
1.Wired connection to home WIFI router
2.APP add device
3.Support128GB TF card
4.Indicator LED light for channel status
5.Built-in speaker,support voice prompt
6.Support various kinds of wireless camera (auto pair function)
7.Connect 4 wireless cameras at most

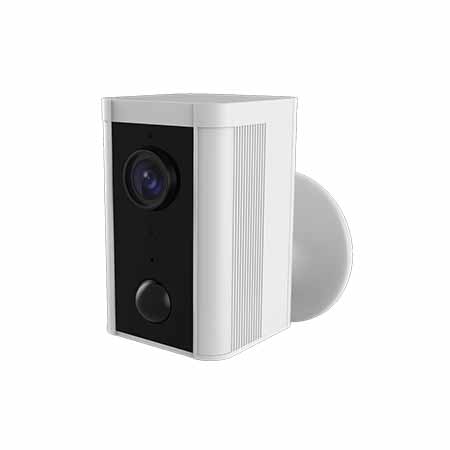

Main feature of PIR CAMERA:
1.100% totally wire-free
2.2 18650 Lithium battery, rechargeable directly
3.1080P HD resolution
4.Infrared night vision
5.PIR motion detection
6.Two way audio
7.Local recording on gateway
8.Wireless auto pair with gateway
