Model Name

Model

JA-PD3031

JA-PD3031-POE

The name

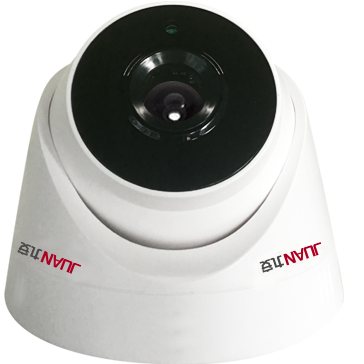

3MPinfrared dome network camera

Basic spec.

Pixel

3MP

Sensor type

1 / 2.7 "CMOS Sensor

Shutter

Shutter adaptive

Lens

F2.0, viewing angle 104 °

Day and night conversion mode

ICR infrared filter

Digital noise reduction

3D DNR

Wide dynamic range

Digital WDR

Infrared irradiation distance

20米 (Varies by environment)

Compression standard

Video compression standard

H.265/H.264

Video compression code rate

High-definition and standard-definition two files, bit rate adaptive

Audio encoding format

G711A

Images

Maximum image size

22304 x 1296 support dual stream

Frame rate

Maximum 20 frames, adaptive network frame rate

Image settings

Saturation, brightness, contrast, sharpness can be adjusted by NVR or client

BLC

Support

Image flip

Support horizontal and vertical flip

Privacy masking

Support

Alarm function

Smart alarm

Humanoid detection alarm, motion detection alarm

Alarm information

Alarm information push

Network features

Supporting Protocol

TCP/IP, ICMP,HTTP,DHCP,DNS,RTP,RTSP,NTP,IGMP

Interface Protocol

N1/RTSP/ONVIF/HK Protocol

General spec.

Operating temperature and humidity

-30℃~50℃，Humidity is less than 95% (no condensation)

Power supply

DC 12V/1A (Note: DC12V Φ5.5mm round head power supply is required)

DC 12V/PoE(802.3af)

Protection level

TVS 4000V lightning protection, anti-surge
