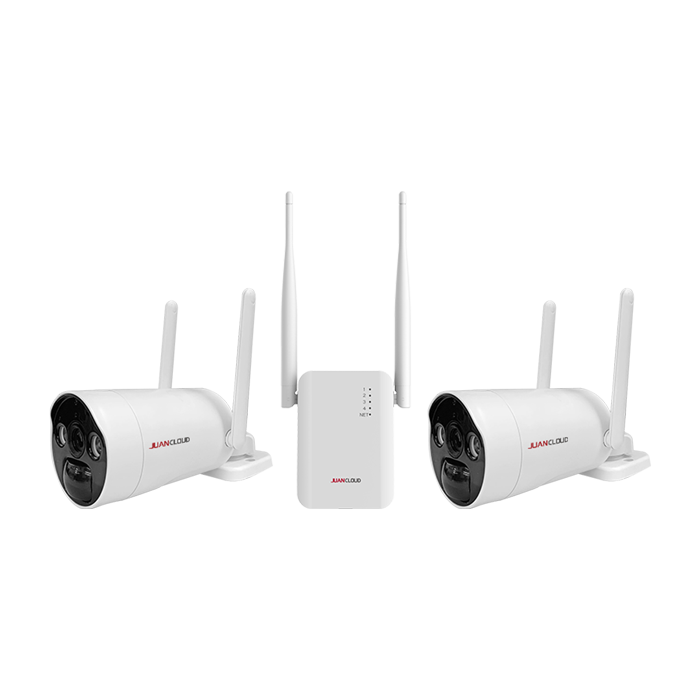

Kit model number | JA-G4-4G-BK23-W | |
Wireless NVR | ||
Model number | JA-G4-4G | |
Video and audio input |
Network video input | 4 CH |
video access | Network connection | 4G Sim card connection or use the network cable to connect to the home router |
Viewing method | Support mobile phone, PC client | |
Video and audio codec specification |
Video compression standard |
H.265、H.264 |
Recording resolution | 3MP | |
Synchronous playback | 1 CH APP | |
Storage | Support cloud storage/maximum support 256G TF card | |
Wireless network standard |
Wi-Fi 2.4G(IEEE802. 11b/g/n) | |
Interface | network interface | 1*RJ45 10M/100M adaptive network port |
Button interface | 1 reset button, 1 match code button | |
indicator light | indicator light | 1 Internet indicator light |
Channel indicator light | 4 Channel indicator light | |
Power supply | DC 12V1A | |
Wireless IP Camera | ||
Model number | BK23-W | |
Pixels | 3MP | |
Lens | 4mm | |
Video compression standard |
H.265,H.264 | |
Stream speficaition | Dual stream | |
2304x1296@15fps | ||
640x360@15fps | ||
Internet | Wi-Fi 2.4G(IEEE802. 11b/g/n) | |
IR distance | 15m | |
Battery | Built-in 2 rechargeable lithium batteries,9000mAH in total |
